ZDI-25-310: Remote NULL Deref in Linux KSMBD
Overview
This vulnerability allows a remote, unauthenticated attacker to trigger a NULL pointer dereference in the ksmbd
Linux kernel subsystem, leading to a system crash or hang. Only systems with the ksmbd
kernel module loaded or built-in are affected.
- ZDI ID: ZDI-25-310
- CVSS Score: 6.8 (AV:N/AC:H/PR:N/UI:N/S:C/C:N/I:N/A:H)
- Fixed in: commit c8b5b7c
Motivation
For almost a year now, I’ve been doing vulnerability research on the Linux kernel as part of my personal projects. The kernel is just fascinating, and having the source code makes progress much fasterâwhich is so important when you can only spare a few hours per week.
During that time, I had some success statically analyzing third-party kernel modules and found a couple of 0-days. Gradually, my focus shifted to the vanilla kernel itselfâthe juicy stuff. But with one of the most competitive targets out there, reading code blindly wasnât gonna cut it.
So, I learned how to use syzkaller, came up with a few optimizations for my (unusual) environment, and started looking for overlooked syscalls not yet described in syzkaller. I found some and fuzzed them, but honestly, it felt like picking up breadcrumbsâat least with the kernel knowledge I had at the time.
Sure, I couldâve dug deeper into its internals or try to squeeze more from coverage gap visible in the coverage heatmapâand that mightâve worked. But honestly, at some point, it started feeling less like fun and more like work.
Fuzzer
Looking for alternatives, I stumbled upon a blog post by Lau @notselwyn on fuzzing the ksmbd kernel subsystem with syzkaller, thanks to a tip from Yunseong Kim. Lau adapted syzkaller to fuzz network stack of ksmbd
âimpressive work!
The gears in my head started turning. I knew a few general things about efficient fuzzing:
- For obscure targets, the fuzzer choice doesnât matter much.
- For high-profile targets, you have to demonastrate a novel approach:
- find a new attack surface
- combine fuzzers/fuzzing modes, craft a perfect input corpus, and run a well-organized campaign
- or come up with a new fuzzer that does something different
I wanted to avoid writing syscall/protocol definitions, so the fuzzer had to be mutational. Sure, there were already plenty of network fuzzers out thereâunited by their ease of use, simplicity and probaly having zero chances to find anything in the kernel.
BUTâthere was one thing nobody had tried: combining a network fuzzer with coverage-based feedback. AND fuzzing over network had a huge advantage. While being painfully slow, it has the potential to walk through full state machines and hit proper network APIs, potentially triggering side effects.
Looked like a fun project. And ksmbd seemed like a solid first target:
- network-facing â higher impact
- relatively new â not fuzzed to death
Still, I kept my expectations low. It had already been fuzzed, so this was mostly to test and debug the fuzzerânot much more.
After some late-night vibe coding, I had the first prototype ready: super basic mutations, coverage feedback, crash detection, and an initial corpus of legit SMB traffic. It was time to set up the target.
Target
Compiling and installing the kernel was straightforward::
scripts/config -e KCOV -e KCOV_INSTRUMENT_ALL -e DEBUG_FS -e NET_9P -e NET_9P_VIRTIO -e KCOV_ENABLE_COMPARISONS -e KALLSYMS -e KALLSYMS_ALL -e DEBUG_INFO -e KASAN -d RANDOMIZE_BASE -d RANDOMIZE_MEMORY -e DEBUG_INFO_DWARF4 -d WERROR -e SECURITYFS -e CONFIGFS_FS -e KASAN_INLINE -e WARNING -e FORTIFY_SOURCE -e HARDENED_USERCOPY -e LOCKUP_DETECTOR -e SOFTLOCKUP_DETECTOR -e HARDLOCKUP_DETECTOR -e DETECT_HUNG_TASK -e UBSAN -e LOCKDEP -e PROVE_LOCKING -e DEBUG_ATOMIC_SLEEP -e PROVE_RCU -e DEBUG_VM -e REFCOUNT_FULL -e BOOTPARAM_HARDLOCKUP_PANIC -e WQ_WATCHDOG--set-str CONFIG_LOCALVERSION -ksmbd-fuzz -e CIFS_UPCALL -e CIFS_XATTR -e CIFS_POSIX -e CIFS_DEBUG -e CIFS_DFS_UPCALL -e CIFS_SWN_UPCALL -e CIFS_FSCACHE -e SMB_SERVER_SMBDIRECT -e SMB_SERVER_CHECK_CAP_NET_ADMIN -e SMB_SERVER_KERBEROS5 -e SMBFS -e CIFS_SMB_DIRECT -e CIFS_NFSD_EXPORT -e CIFS_DFS_UPCALL -e CIFS_DEBUG_DUMP_KEYS -e CIFS_DEBUG2 -e CIFS_POSIX -e CIFS_ALLOW_INSECURE_LEGACY -e CIFS_STATS2
make oldconfig &&
make ARCH=arm64 -j`nproc` && make ARCH=arm64 -j`nproc` modules && make ARCH=arm64 dtbs && sudo make modules_install && sudo make install
Then, I added kernel.panic_on_warn=0 kernel.panic_on_oops=0
to GRUB_CMDLINE_LINUX_DEFAULT
in /etc/default/grub
to make sure the target VM wouldnât reboot on kernel panic.
Ksmbd Setup
To configure the ksmbd server, I needed ksmbd-tools
:
sudo apt update && sudo apt upgrade -y
sudo apt install ksmbd-tools
I kept it simple with a minimal config in /etc/ksmbd/ksmbd.conf
:
[global]
workgroup = WORKGROUP
netbios name = ksmbd-server
server string = KSMBD File Server
[shared]
path = /opt/share
guest ok = yes
writable = yes
Then I made sure ksmbd
would start after reboot:
sudo chmod 777 /opt/share
sudo systemctl start ksmbd
sudo systemctl enable ksmbd
And then I just started fuzzing.
Crash discovery

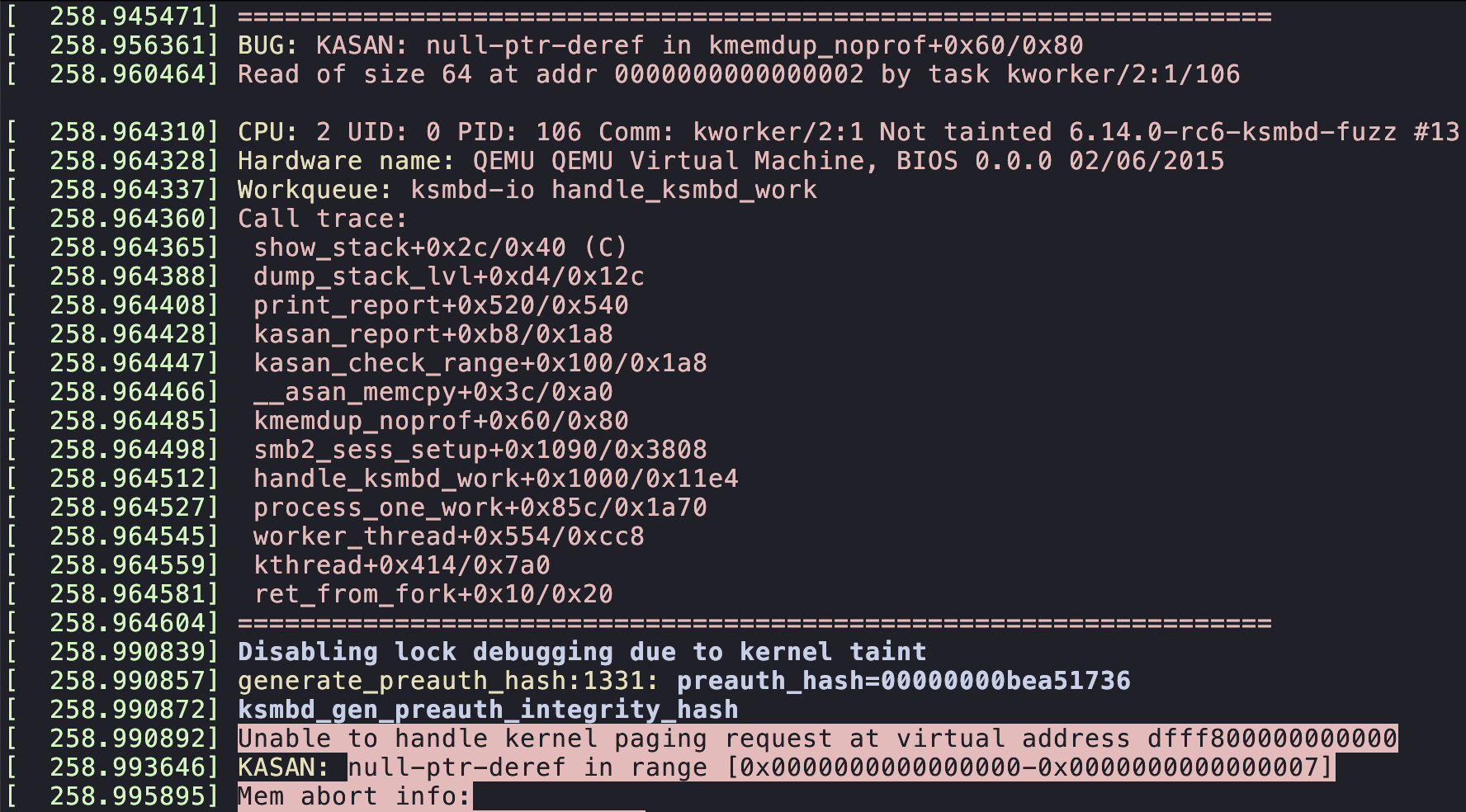

I didnât expect muchâjust wanted to make sure the fuzzer was stable enough for long campaigns. But to my surprise, the fuzzer stopped just after about 40 minutes of work (it couldn’t resume on crash at the time). And I got this from the system logs:
NULL deref, something often overlooked when fuzzing the kernel locally, but remote NULL deref has much higher implicationsâlike remotely rendering the system unusable.
After impact analysis, I concluded:
- Ubuntu Desktop: Immediately reboots after triggering the bug.
- Ubuntu Server: Doesnât reboot (
kernel.panic_on_oops=0
by default), but repeated triggering causes the system to hang until all kernel threads stallâbasically a full DoS.
So yeah, looked good enough to continue the investigation.
Root Cause Analysis
Unwinding the call stack and jumping around the code, I quickly found out that the NULL defer happens in the function alloc_preauth_hash
(in fs/smb/server/smb2pdu.c
) when dereferencing conn->preauth_info
.
static int alloc_preauth_hash(struct ksmbd_session *sess,
struct ksmbd_conn *conn)
{
if (sess->Preauth_HashValue)
return 0;
sess->Preauth_HashValue = kmemdup(conn->preauth_info->Preauth_HashValue,
PREAUTH_HASHVALUE_SIZE, KSMBD_DEFAULT_GFP);
if (!sess->Preauth_HashValue)
return -ENOMEM;
return 0;
}
But why was conn->preauth_info
uninitialized?
Itâs allocated in smb2_handle_negotiate
, and only for SMB 3.1.1 (makes senseâpreauth integrity came in with that version):
switch (conn->dialect) {
case SMB311_PROT_ID:
conn->preauth_info =
kzalloc(sizeof(struct preauth_integrity_info),
KSMBD_DEFAULT_GFP);
if (!conn->preauth_info) {
rc = -ENOMEM;
rsp->hdr.Status = STATUS_INVALID_PARAMETER;
goto err_out;
}
Further debugging showed that ksmbd
correctly identified the protocol used as SMB 3.1.1, so no dialect confusion here. Going further back, there was a series of checks specifically for SMB 3.1.1:
if (conn->dialect == SMB311_PROT_ID) {
unsigned int nego_ctxt_off = le32_to_cpu(req->NegotiateContextOffset);
if (smb2_buf_len < nego_ctxt_off) {
...
goto err_out;
}
if (smb2_neg_size > nego_ctxt_off) {
...
goto err_out;
}
if (smb2_neg_size + le16_to_cpu(req->DialectCount) * sizeof(__le16) >
nego_ctxt_off) {
...
goto err_out;
}
} else {
if (smb2_neg_size + le16_to_cpu(req->DialectCount) * sizeof(__le16) >
smb2_buf_len) {
...
goto err_out;
}
}
If any of those fail, the function returns early without initializing conn->preauth_info
(set to 0). The session stays alive, and an attacker can send a crafted session setup request that triggers the sequence smb2_sess_setup -> generate_preauth_hash -> alloc_preauth_hash
and causes the NULL dereference.
Wrap-up
Overall, it was a great first test of the fuzzer that showed that there’s still a room for even such “dumb” activity as fuzzing over network. I’d really like to thank ZDI and the Linux kernel maintainers for the work involved in getting this vulnerability triaged and patched super quickly!
Thereâs more coming as I expand the fuzzerâs scope and capabilitiesâI hope I’ll be able to share more soon!
